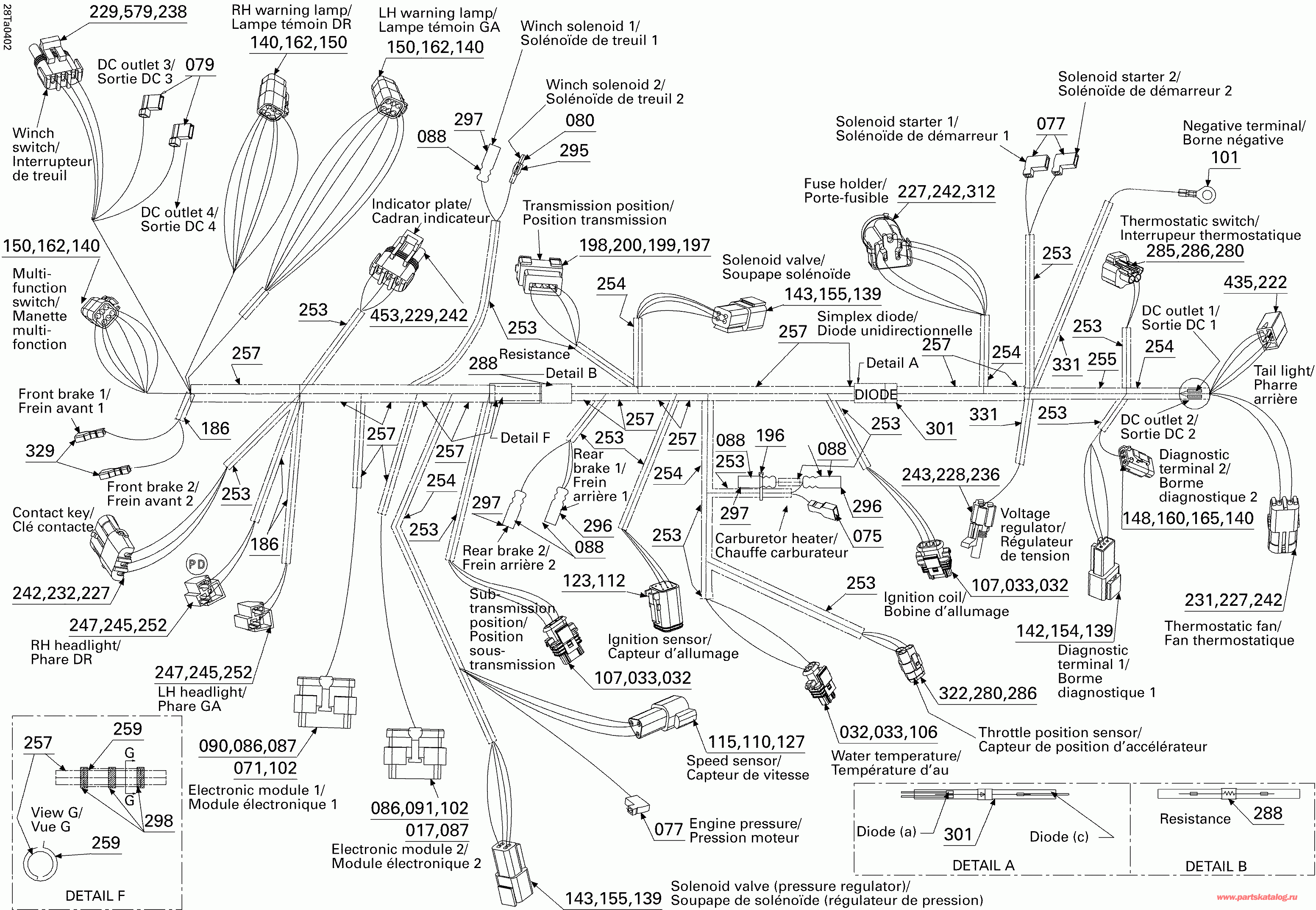

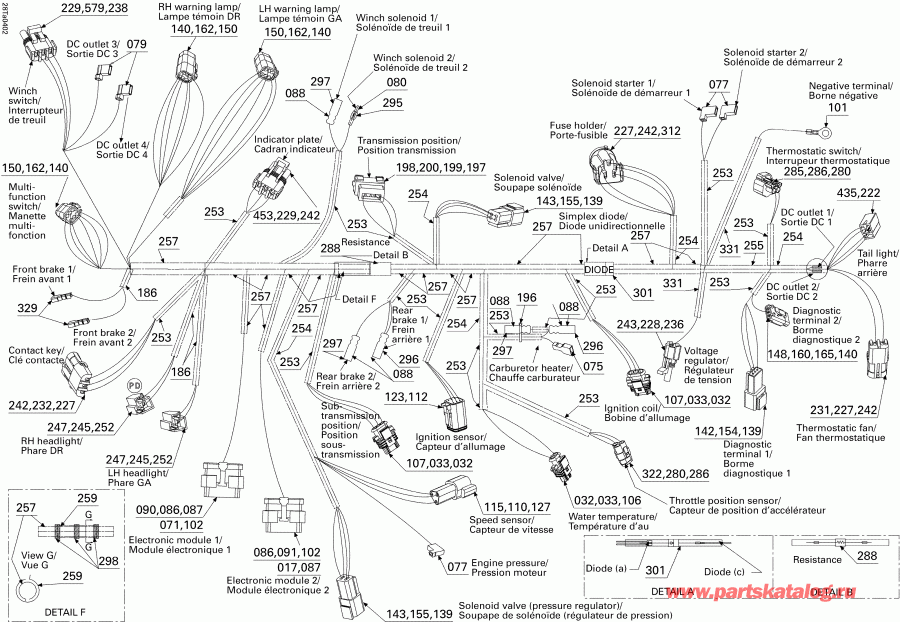

Раздел: Main Жгут проводов | Main Harness

Жгут проводов в сборе. INCLUDES ITEMS 1 TO 579 (HARNESS ASSY. INCLUDES ITEMS 1 TO 579)

Провод Сальник (WIRE SEAL)

FEMALE Клемма (FEMALE TERMINAL)

(последний код) FEMALE Клемма (FEMALE TERMINAL)

Провод Сальник (WIRE SEAL)

FEMALE Клемма (FEMALE TERMINAL)

FEMALE Клемма (FEMALE TERMINAL)

FEMALE Клемма (FEMALE TERMINAL)

MALE Клемма (MALE TERMINAL)

(последний код) MALE Клемма (MALE TERMINAL)

FEMALE Клемма (FEMALE TERMINAL)

FEMALE Клемма (FEMALE TERMINAL)

FEMALE Клемма (FEMALE TERMINAL)

(последний код) FEMALE Клемма (FEMALE TERMINAL)

MALE Клемма Корпус (26 CIRCUITS) INCLUDES Провод Сальник 278001307 (MALE TERMINAL HOUSING (26 CIRCUITS). INCLUDES WIRE SEAL 278001307)

MALE Клемма Корпус (26 CIRCUITS) INCLUDES Провод Сальник 278001307 (MALE TERMINAL HOUSING (26 CIRCUITS). INCLUDES WIRE SEAL 278001307)

OPEN BARREL (OPEN BARREL)

(последний код) OPEN BARREL (OPEN BARREL)

СальникING Колпачок (SEALING CAP)

MALE Клемма Корпус (2 CIRCUITS) (MALE TERMINAL HOUSING (2 CIRCUITS))

MALE Клемма Корпус (3 CIRCUITS) (MALE TERMINAL HOUSING (3 CIRCUITS))

MALE Клемма (MALE TERMINAL)

FEMALE Клемма (FEMALE TERMINAL)

MALE Клемма Корпус (3 CIRCUITS) (MALE TERMINAL HOUSING (3 CIRCUITS))

MALE Клемма Корпус (6 CIRCUITS) (MALE TERMINAL HOUSING (6 CIRCUITS))

MALE LOCK (3 CIRCUITS) (MALE LOCK (3 CIRCUITS))

MALE Клемма (MALE TERMINAL)

FEMALE Клемма (FEMALE TERMINAL)

MALE Клемма Корпус (3 CIRCUITS) (MALE TERMINAL HOUSING (3 CIRCUITS))

MALE Клемма Корпус (4 CIRCUITS) (MALE TERMINAL HOUSING (4 CIRCUITS))

FEMALE Клемма Корпус (3 CIRCUITS) (FEMALE TERMINAL HOUSING (3 CIRCUITS))

FEMALE Клемма Корпус (6 CIRCUITS) (FEMALE TERMINAL HOUSING (6 CIRCUITS))

(Male) Secondary Lock (3 Circuits) (Deutsch) ((Male) Secondary Lock (3 Circuits) (Deutsch))

MALE LOCK (4 CIRCUITS) (MALE LOCK (4 CIRCUITS))

(Female) Secondary Lock (3 Circuits) (Deutsch) ((Female) Secondary Lock (3 Circuits) (Deutsch))

(Female) Secondary Lock (6 Circuits) (Deutsch) ((Female) Secondary Lock (6 Circuits) (Deutsch))

Заглушка (PLUG)

LOW температура VINYL Трубопровод (LOW TEMPERATURE VINYL TUBING)

Locking Tie 142 mm (Locking Tie 142 mm)

FEMALE Клемма (FEMALE TERMINAL)

FEMALE Клемма Корпус (4 CIRCUITS) (FEMALE TERMINAL HOUSING (4 CIRCUITS))

Провод Сальник (WIRE SEAL)

Колпачок (CAP)

FEMALE Клемма Корпус (3 CIRCUITS) (FEMALE TERMINAL HOUSING (3 CIRCUITS))

(последний код) FEMALE Клемма Корпус (3 CIRCUITS) (FEMALE TERMINAL HOUSING (3 CIRCUITS))

MALE Клемма (MALE TERMINAL)

FEMALE Клемма (FEMALE TERMINAL)

FEMALE Клемма (FEMALE TERMINAL)

FEMALE Клемма Корпус (2 CIRCUITS) (FEMALE TERMINAL HOUSING (2 CIRCUITS))

FEMALE Клемма Корпус (3 CIRCUITS) (FEMALE TERMINAL HOUSING (3 CIRCUITS))

MALE Клемма Корпус (1 CIRCUIT) (MALE TERMINAL HOUSING (1 CIRCUIT))

MALE Клемма Корпус (3 CIRCUITS) (MALE TERMINAL HOUSING (3 CIRCUITS))

Провод Сальник (WIRE SEAL)

Провод Сальник (WIRE SEAL)

Female Lock (2 Circuits) (Female Lock (2 Circuits))

FEMALE Клемма (FEMALE TERMINAL)

FEMALE Клемма Корпус (2 CIRCUITS) (FEMALE TERMINAL HOUSING (2 CIRCUITS))

Трубопровод 6 MM (TUBING 6 MM)

(последний код) Трубопровод 6 MM (TUBING 6 MM)

Трубопровод 9 MM (TUBING 9 MM)

Трубопровод 13 MM (TUBING 13 MM)

(последний код) Трубопровод 13 MM (TUBING 13 MM)

Трубопровод (TUBING)

Трубопровод 25 mm (TUBING 25 mm)

(последний код) Трубопровод 25 mm (TUBING 25 mm)

FEMALE Клемма (FEMALE TERMINAL)

FEMALE Клемма Корпус (2 CIRCUITS) (FEMALE TERMINAL HOUSING (2 CIRCUITS))

Сальник (SEAL)

RESISTANCE (RESISTANCE)

INSULATED SHEATH (INSULATED SHEATH)

(последний код) INSULATED SHEATH (INSULATED SHEATH)

INSULATED SHEATH (INSULATED SHEATH)

INSULATED SHEATH (INSULATED SHEATH)

(последний код) INSULATED SHEATH (INSULATED SHEATH)

DIODE (DIODE)

MALE Клемма Корпус (5 CIRCUITS) (MALE TERMINAL HOUSING (5 CIRCUITS))

FEMALE Клемма Корпус (3 CIRCUITS) (FEMALE TERMINAL HOUSING (3 CIRCUITS))

FEMALE Клемма (FEMALE TERMINAL)

Защита Трубка 4 MM (PROTECTOR TUBE 4 MM)

FEMALE Клемма (FEMALE TERMINAL)

FEMALE Клемма Корпус (3 CIRCUITS) (FEMALE TERMINAL HOUSING (3 CIRCUITS))

Провод Сальник (WIRE SEAL)
