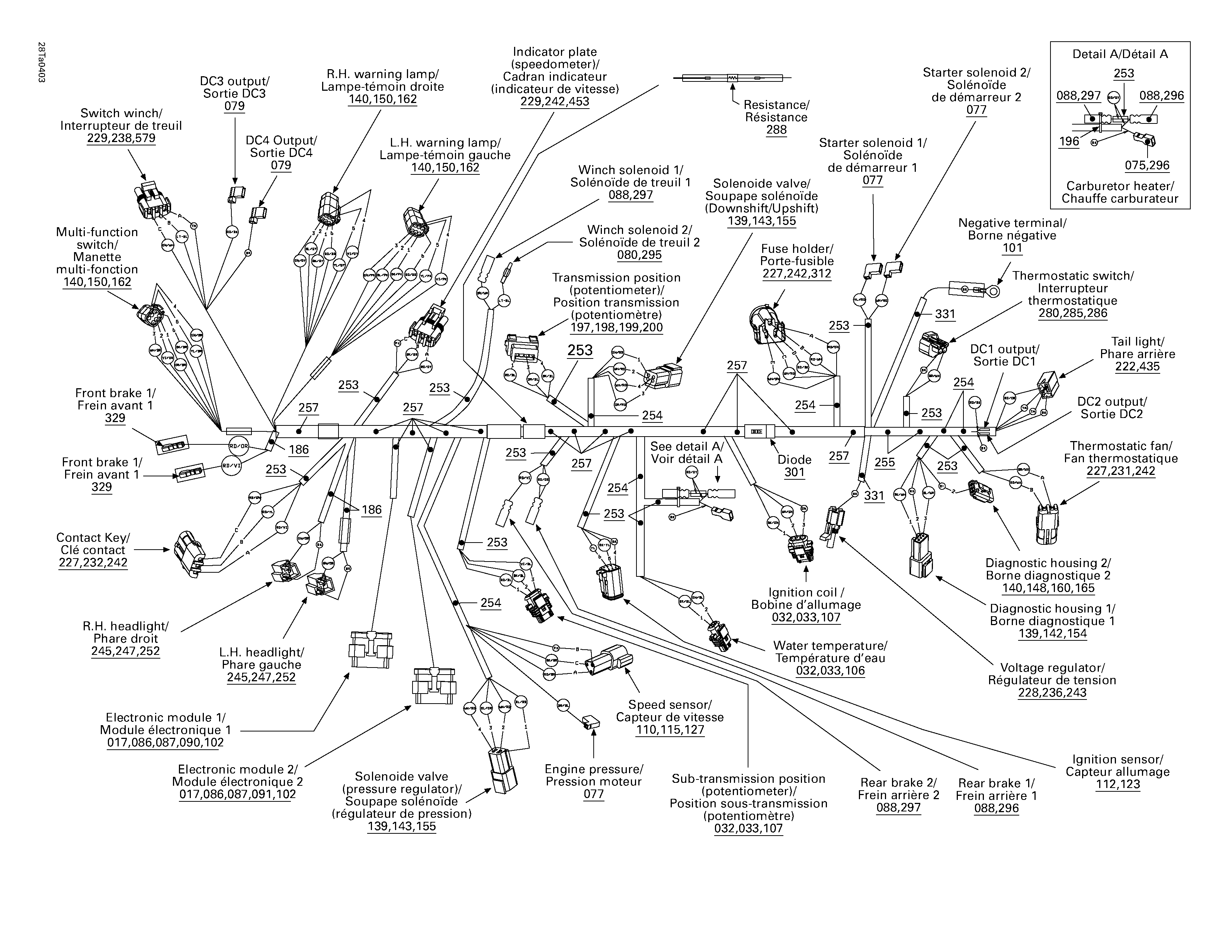

Раздел: Main Жгут проводов | Main Harness

Жгут проводов в сборе. Includes 17 - 454. (Harness Assy. Includes 17 - 454.)

Сальник (Seal)

Female Клемма (Female Terminal)

(последний код) Female Клемма (Female Terminal)

Провод Сальник (Wire Seal)

Female Клемма (Female Terminal)

Female Клемма (Female Terminal)

Female Клемма (Female Terminal)

Male Клемма (Male Terminal)

(последний код) Male Клемма (Male Terminal)

Female Клемма (Female Terminal)

Female Клемма (Female Terminal)

Female Клемма (Female Terminal)

(последний код) Female Клемма (Female Terminal)

Female Клемма Корпус (26 Circuits) Includes 90 - 90A. (Female Terminal Housing (26 Circuits). Includes 90 - 90A.)

Провод Сальник (Wire Seal)

Female Клемма Корпус (26 Circuits) Includes 91 - 91A. (Female Terminal Housing (26 Circuits). Includes 91 - 91A.)

Провод Сальник (Wire Seal)

Кольцо Клемма (Ring Terminal)

(последний код) Кольцо Клемма (Ring Terminal)

Сальникing Колпачок (Sealing Cap)

Female Клемма Корпус (2 Circuits) (Female Terminal Housing (2 Circuits))

Female Клемма Корпус (3 Circuits) (Female Terminal Housing (3 Circuits))

Male Клемма (Male Terminal)

Female Клемма (Female Terminal)

Male Клемма Корпус (3 Circuits) (Male Terminal Housing (3 Circuits))

Female Клемма Корпус (6 Circuits) (Female Terminal Housing (6 Circuits))

Male Lock (3 Circuits) (Male Lock (3 Circuits))

Male Клемма (Male Terminal)

Female Клемма (Female Terminal)

Male Клемма Корпус (3 Circuits) (Male Terminal Housing (3 Circuits))

Male Клемма Корпус (4 Circuits) (Male Terminal Housing (4 Circuits))

Female Клемма Корпус (3 Circuits) (Female Terminal Housing (3 Circuits))

Female Клемма Корпус (6 Circuits) (Female Terminal Housing (6 Circuits))

(Male) Secondary Lock (3 Circuits) (Deutsch) ((Male) Secondary Lock (3 Circuits) (Deutsch))

Male Lock (4 Circuits) (Male Lock (4 Circuits))

(Female) Secondary Lock (3 Circuits) (Deutsch) ((Female) Secondary Lock (3 Circuits) (Deutsch))

(Female) Secondary Lock (6 Circuits) (Deutsch) ((Female) Secondary Lock (6 Circuits) (Deutsch))

Заглушка (Plug)

Трубопровод Low температура 1 / 4" (Tubing Low Temperature 1/4")

Tie Rap 130 mm (Tie Rap 130 mm)

Female Клемма (Female Terminal)

Male Клемма Корпус (4 Circuits) (Male Terminal Housing (4 Circuits))

Провод Сальник (Wire Seal)

Колпачок (Cap)

Female Клемма Корпус (3 Circuits) (Female Terminal Housing (3 Circuits))

(последний код) Female Клемма Корпус (3 Circuits) (Female Terminal Housing (3 Circuits))

Male Клемма (Male Terminal)

Female Клемма (Female Terminal)

Female Клемма (Female Terminal)

Male Клемма Корпус (2 Circuits) (Male Terminal Housing (2 Circuits))

Male Клемма Корпус (3 Circuits) (Male Terminal Housing (3 Circuits))

Female Клемма Корпус (1 Circuit) (Female Terminal Housing (1 Circuit))

Female Клемма Корпус (3 Circuit) (Female Terminal Housing (3 Circuit))

Провод Сальник (Wire Seal)

Провод Сальник (Wire Seal)

Female Lock (2 Circuits) (Female Lock (2 Circuits))

Female Клемма (Female Terminal)

Female Клемма Корпус (2 circuits) (Female Terminal Housing (2 circuits))

Корпус 6 mm (Housing 6 mm)

(последний код) Корпус 6 mm (Housing 6 mm)

Трубопровод 9 mm (Tubing 9 mm)

Трубопровод 13 mm (Tubing 13 mm)

(последний код) Трубопровод 13 mm (Tubing 13 mm)

Трубопровод 19 mm (Tubing 19 mm)

Трубопровод 25 mm (Tubing 25 mm)

(последний код) Трубопровод 25 mm (Tubing 25 mm)

Female Клемма (Female Terminal)

Female Клемма Корпус (2 Circuits) (Female Terminal Housing (2 Circuits))

Сальник (Seal)

Resistance (Resistance)

Insulated Sheath (Insulated Sheath)

(последний код) Insulated Sheath (Insulated Sheath)

Insulated Sheath (Insulated Sheath)

Insulated Sheath (Insulated Sheath)

(последний код) Insulated Sheath (Insulated Sheath)

Adhesive Tape 3 / 4" (чёрный Vinyl) (Adhesive Tape 3/4" (Black Vinyl))

Diode (Diode)

Male Клемма Корпус (5 Circuits) (Male Terminal Housing (5 Circuits))

Female Клемма (Female Terminal)

Защита Трубка (Protector Tube)

Female Клемма (Female Terminal)

Female Клемма Корпус (3 Circuits) (Female Terminal Housing (3 Circuits))

Провод Сальник (Wire Seal)
